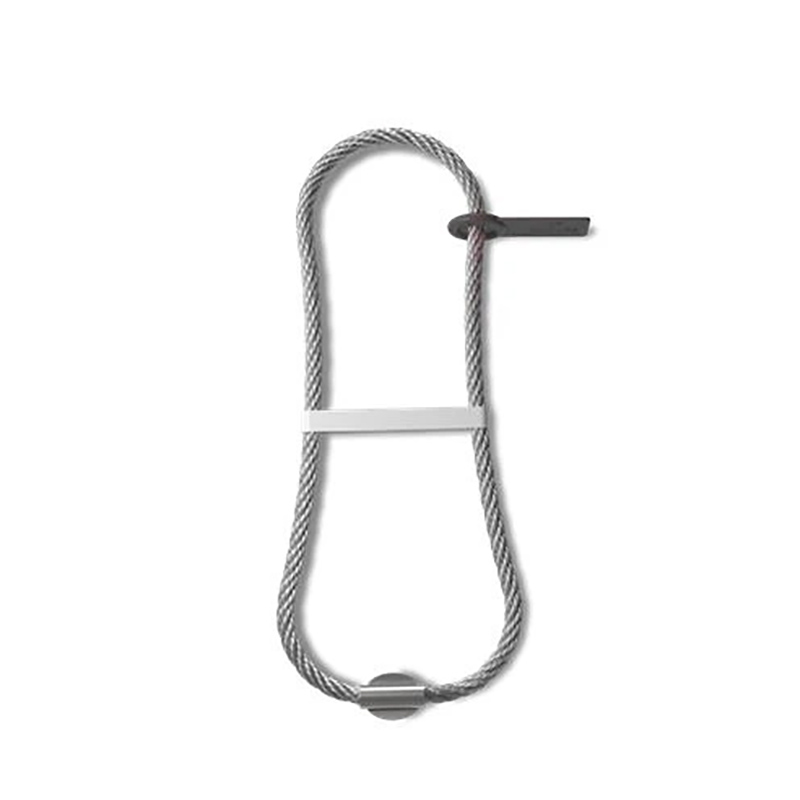

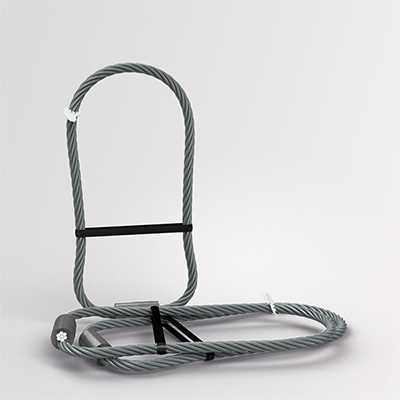

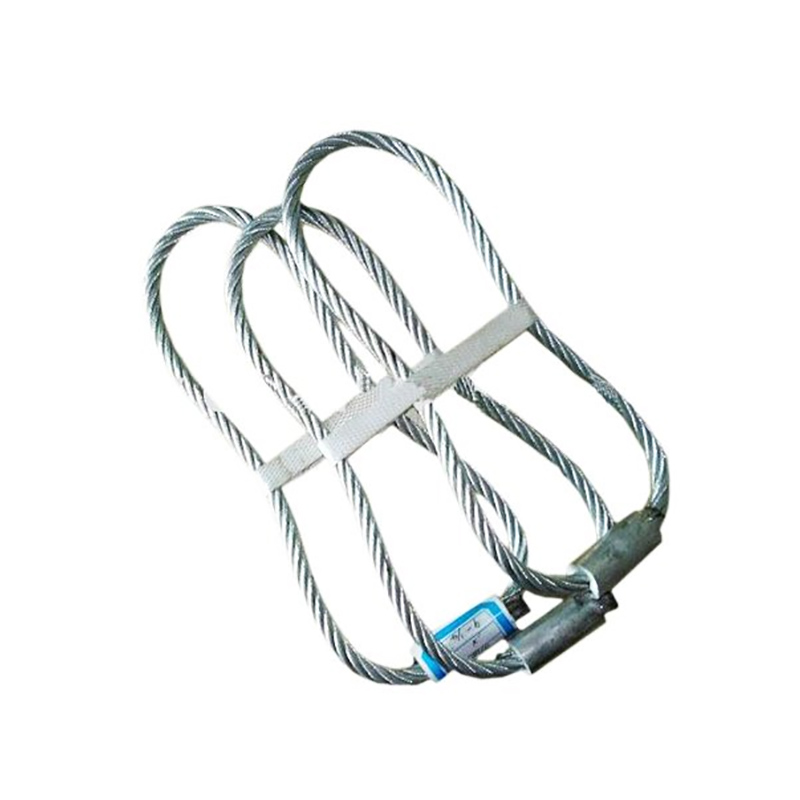

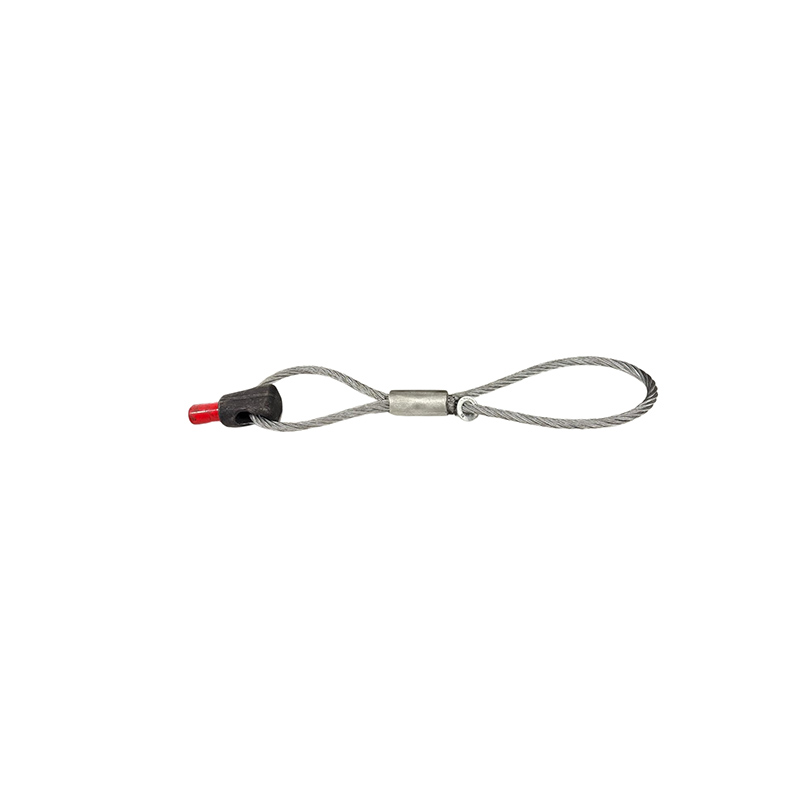

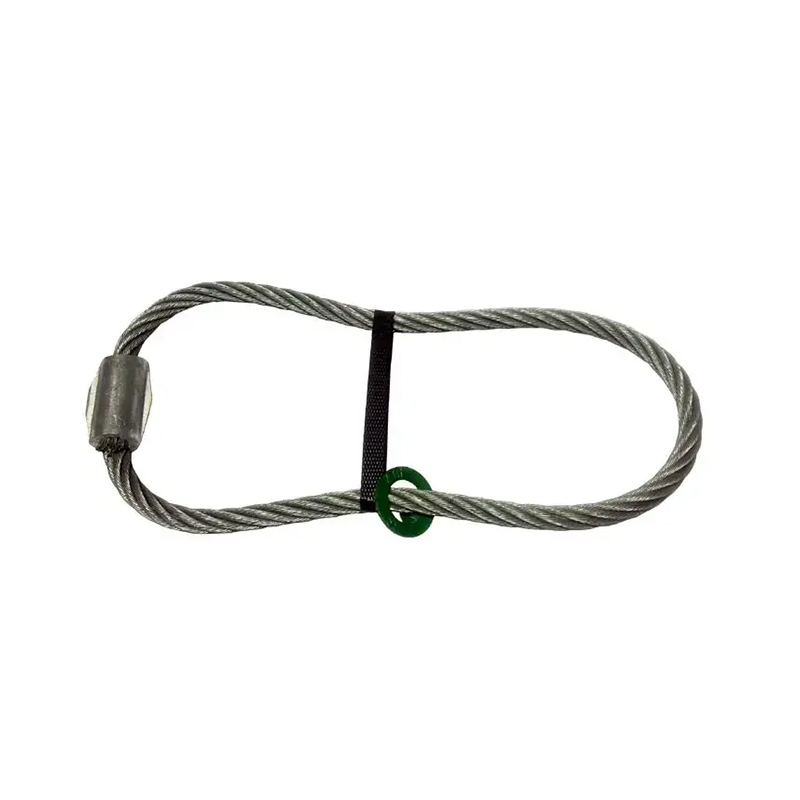

Wire Rope Lifting Loop For Precast Concrete Elements is a lifting tool for precast concrete elements, widely used in the construction and precast industries during transportation and installation. Made of high-strength steel wire rope, usually galvanized for corrosion resistance and durability. The wire rope is fixed by a steel crimping sleeve to ensure a secure connection. A wide range of load capacities, from 0.5 tons to 12.5 tons. Different models of lifting loops are suitable for precast concrete elements of different weights.
Número de artículo :
Wire Rope Lifting Loop For Precast Concrete ElementsOrden (MOQ) :
500Origen del producto :
chinaPlazo de entrega :
7-10daysWire Rope Lifting Loop For Precast Concrete Elements
With the rapid development of prefabricated buildings, the hoisting efficiency and safety of precast concrete components are directly related to the project progress and cost control. Traditional hoisting methods often pose hidden dangers due to insufficient strength, easy wear or complex installation. Wire rope hoisting rings are becoming the "invisible contributor" to industry upgrades due to their high strength, flexibility and durability.
Why choose wire rope hoisting ring?
The hoisting of precast concrete components must meet the three core requirements of "strong load-bearing, impact resistance, and corrosion resistance". Traditional steel bar hoisting rings are prone to accidents due to brittle fracture, while synthetic fiber slings are afraid of high temperatures and sharp edges. The wire rope hoisting ring is based on high-carbon steel or galvanized steel wire rope, with a tensile strength of more than 2000MPa, and is protected by a metal casing, perfectly balancing strength and flexibility. Its embedded design can accurately disperse the force to avoid cracking of components during hoisting, especially suitable for large components such as wall panels, beams and columns weighing more than 10 tons.

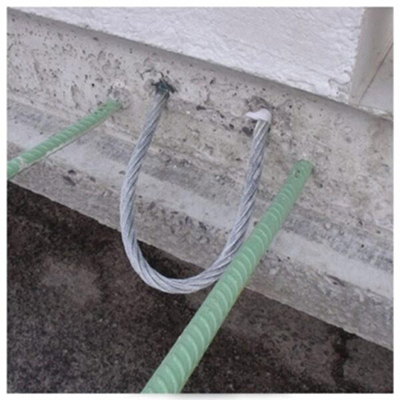

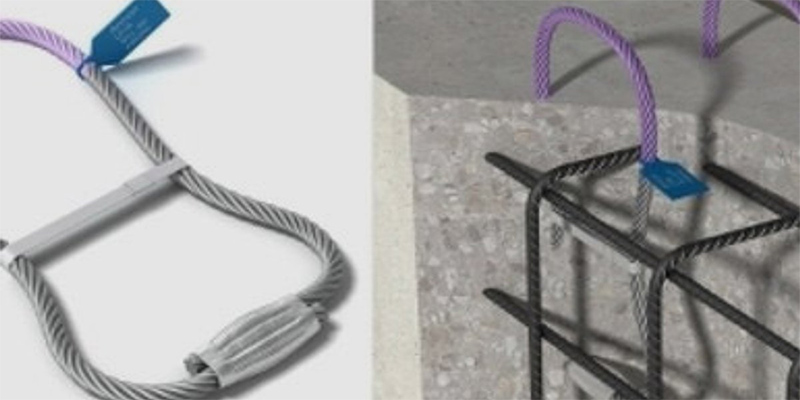

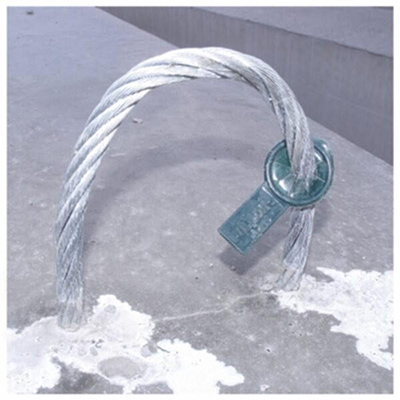

During the pouring stage of the components, the wire rope lifting ring is embedded in the concrete and fixed by U-bolts or wedge-shaped anchors to form a "muscle-bone integration" structure. This design not only reduces the risk of damage to exposed parts, but also dynamically adjusts the lifting point according to the center of gravity of the component to ensure uniform force. Compared with rigid slings, the natural flexibility of the wire rope can absorb the vibration energy when the lifting equipment moves and reduce the probability of microcracks inside the component. Measured data shows that the use of such lifting rings can reduce the lifting breakage rate by more than 60%. At the same time, high-quality galvanizing technology and PVC coating technology give the lifting rings up to 15 years of weather resistance. Some modular design products support reuse after disassembly, which can save more than 30% of the lifting cost for a single project.
Advantages
High safety: Through strict quality control and testing, the safety of the lifting ring is ensured during use.
Affordable: The cost of wire rope lifting ring is low, and some models can be reused, which reduces the construction cost.
Easy to operate: The installation and use process is simple, and no special tools are required

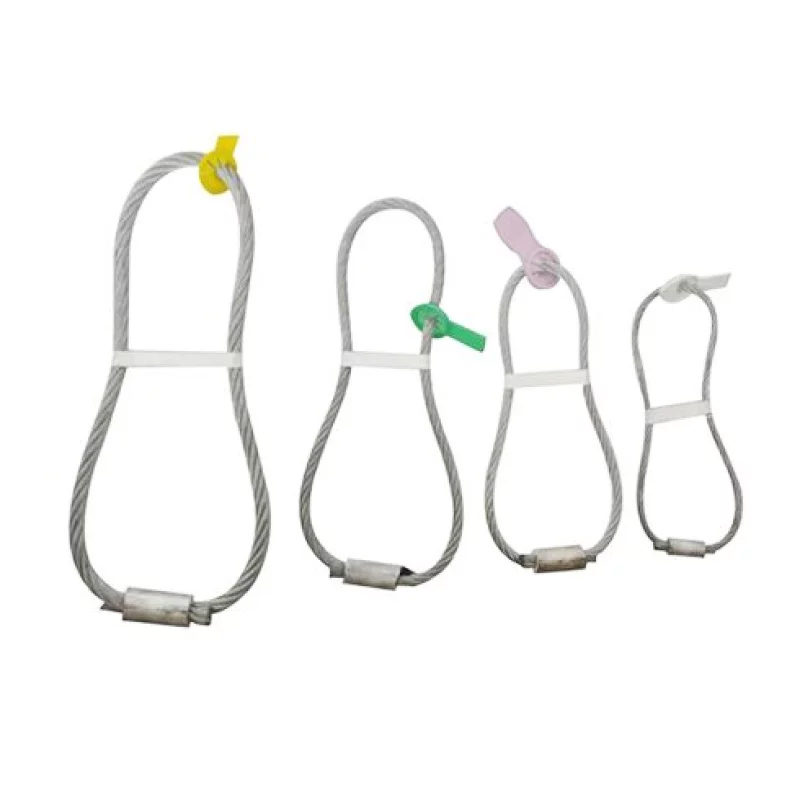

How to choose what you need Lifting Loops
| LSC3701-12 | M/Rd12 | 155 | 6 | 20 |
| LSC3701-16 | M/Rd16 | 155 | 8 | 24 |
| LSC3701-20 | M/Rd20 | 215 | 10 | 33 |
| LSC3701-24 | M/Rd24 | 255 | 12 | 36 |
| LSC3701-30 | M/Rd30 | 300 | 14 | 54 |
| LSC3701-36 | M/Rd36 | 340 | 18 | 67 |
| LSC3701-42 | M/Rd42 | 425 | 20 | 78 |
| LSC3701-52 | M/Rd52 | 480 | 24 | 95 |
Application scenarios
Precast concrete components: suitable for lifting and handling precast wall panels, floor slabs, beams, stairs and other components.
Heavy structural parts: used to lift heavy precast concrete units in bridge construction and large infrastructure projects.
Concealed lifting points: Some models of lifting rings can be hidden or cut off after concrete installation, suitable for occasions where aesthetics are required

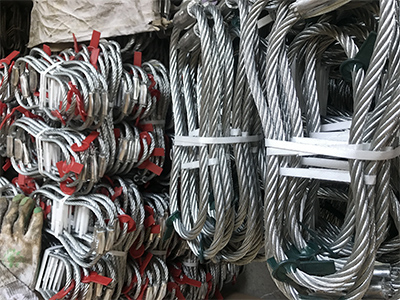

Package
FAQ
Q1: Are you a trading company or factory?
A1: LSC is a comprehensive enterprise that not only has its own factory but also partner factories of the same standard as ours. It also has a complete supply chain, which can provide you with more comprehensive services.
Q2: Is it possible to know how are my products going on without visiting your company?
A2: Yes, it is. After the cooperation is reached, we will plan a perfect production solution for you. The Quality inspection team will track the production process and give regular feedback on the production progress to you. Our factory will also provide pictures and videos at any time. We can also let you see the real status of the order production through video calls.
Q3: What if I am not completely satisfied with the parts I received?
A3: For small parts, LSC offers pre-production and sample delivery services. You can perform various tests on samples. We will start mass production when you are satisfied. If the goods you received have any quality problems. We will take the corresponding responsibility and negotiate with you to solve the problem. For large parts, LSC recommends that you purchase a single piece for trial and then decide whether to continue the order.
Q4: How do you ensure the quality of my parts?
A4: First, LSC will provide a sample delivery service. You can test the properties of your samples. We will mass-produce the order after you are satisfied. Secondly, the quality inspection team will track the production of the order and provide feedback on the inspection data. You can also participate in on-site inspections via video calls. Thirdly, we will conduct a pre-shipment inspection to ensure that the product quality can meet your requirements. Finally, we have quality assurance services, any quality problems will be properly resolved.
Q5: If I order a big quantity, can you give me a good price?
A5: Yes, why not? We will give profits to every customer who sincerely cooperates with LSC. You can send us drawings and requirements and quantities etc. Our technical team will communicate with you and clarify more cooperation details and finally give you a more suitable production solution and a better quotation.
